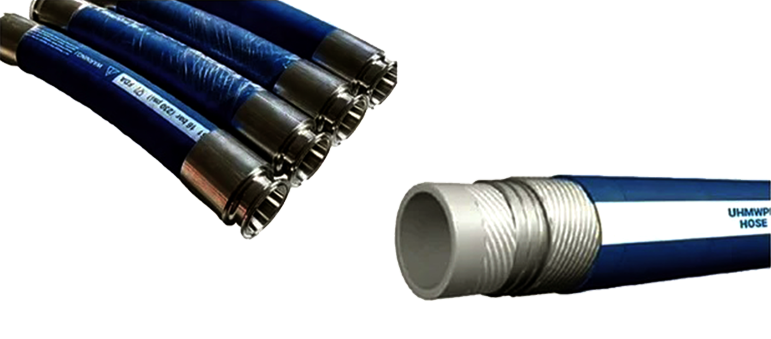

UHMWPE Suction & Discharge Food Hose - 17 BAR
UHMWPE Suction & Discharge Food Hose - 17 BAR
Construction
- Tube : White colour, Synthetic rubberwith transparent UHMPE liner FDA approved
- Reinforcement : Multiplepliesofhightensiletextile with helix steel wire
- Cover : Blue abrasion resistant EPDM syntheticrubber
Applications
Multipurpose suction and delivery hose designed for:
- Milk, Wine, Beer ,Beverages, Edible Oils
- Acids, Chemicals, Solvents
- Non-fatty and non-oily foods and liquids, potable water, sanitary products
- In-plant and tank transfer, delivery, transport
- Also suitable for CIP Cleaning & Sanitation purpose
Features
- Complying with FDA standards
- Free from phthalates, animal derivatives, adipates, plasticizers bisphenol
Also available in(customization options)
- Discharge hoses
- Suction & discharge hoses
- Anti-static twin copperwires
- Inner black electrically conductive UHMW-PEtube
- Outer corrugated rubber profile hose
- Working pressures: 10 bar & 20 bar hoses
Resists any action from many corrosive chemicals, acids, pharma slurries etc

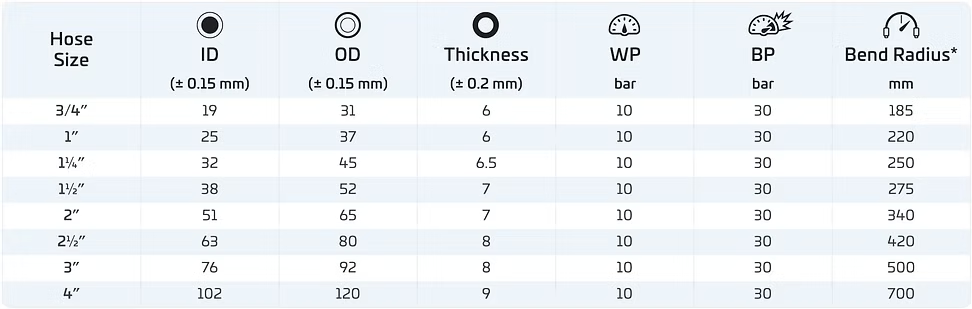

Technical Specifications(Temperature range: -40°C to +120°C)
- Bend radius values are for outer smooth hoses with spiral steel wire reinforcements.
- Outer corrugated finish & discharge hoses have better flexing & bend radius.
