Water Discharge Hose - 20 BAR
Water Discharge Hose - 20 BAR

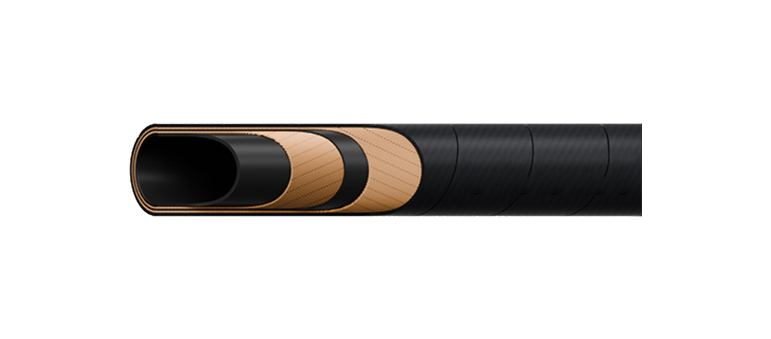

Construction
- Inner tube : Black colour, Synthetic rubber resistant to water
- Reinforcement : Plies of synthetic textile cords
- Cover : Black colour, Synthetic rubber, wrapped type, abrasion water resistant
- Application : Light weight rubber collapsible hose design for water, natural liquid fertilizers, waste water, for submerged pump and irrigation system
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH610-16 | -16 | 1 | 25.0 | 1.34 | 34.0 | 300 | 20 | 900 | 60 | 0.53 |
| PH610-20 | -20 | 1.1/4 | 32.0 | 1.65 | 42.0 | 300 | 20 | 900 | 60 | 0.84 |
| PH610-24 | -24 | 1.1/2 | 38.0 | 1.89 | 48.0 | 300 | 20 | 900 | 60 | 0.98 |
| PH610-32 | -32 | 2 | 51.0 | 2.44 | 62.0 | 300 | 20 | 900 | 60 | 1.10 |
| PH610-40 | -40 | 2.1/2 | 63.0 | 2.99 | 76.0 | 300 | 20 | 900 | 60 | 1.50 |
| PH610-48 | -48 | 3 | 76.0 | 3.50 | 89.0 | 300 | 20 | 900 | 60 | 1.72 |
| PH610-56 | -56 | 3.1/2 | 89.0 | 4.06 | 103.0 | 300 | 20 | 900 | 60 | 2.10 |
| PH610-64 | -64 | 4 | 102.0 | 4.57 | 116.0 | 300 | 20 | 900 | 60 | 2.40 |
| PH610-80 | -80 | 5 | 127.0 | 5.59 | 142.0 | 300 | 20 | 900 | 60 | 3.00 |
| PH610-96 | -96 | 6 | 152.0 | 6.57 | 167.0 | 300 | 20 | 900 | 60 | 5.00 |
| PH610-128 | -128 | 8 | 203.0 | 8.62 | 219.0 | 300 | 20 | 900 | 60 | 7.20 |
- Temperature Range : Continuous: -25°C to +70°C
